Problems with the blue pill and a LCD 16x2

[losingmymind01]

Hi, I've been struggling with an LCD screen to show simple characters with the STM32F103 [Blue Pill].

1. When i try to print some words (without a delay added), i get random characters instead of what im trying to display. An example is:
In the code, i have at the loop:
lcd.setCursor(0, 0);
lcd.print("misery");
lcd.setCursor(0, 1);
lcd.print("pain");

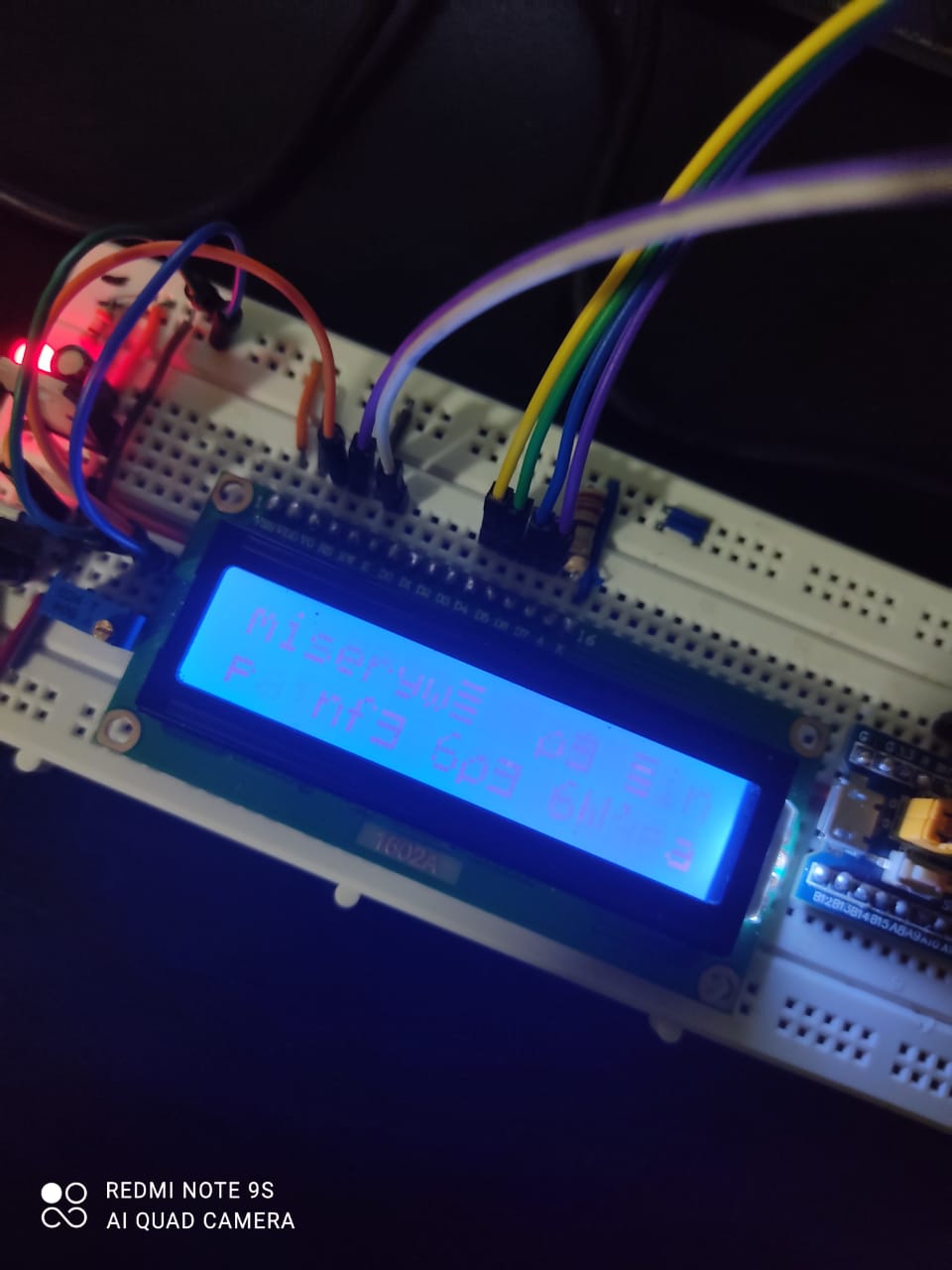

and what my lcd prints is:


2. And when i try to print the same words to the lcd display with a delay of 1500, i get the same problem with a different presentation. In the code i have:
lcd.setCursor(0, 0);
lcd.print("misery");
delay(1000);
lcd.setCursor(0, 1);
lcd.print("pain");
delay(1000);

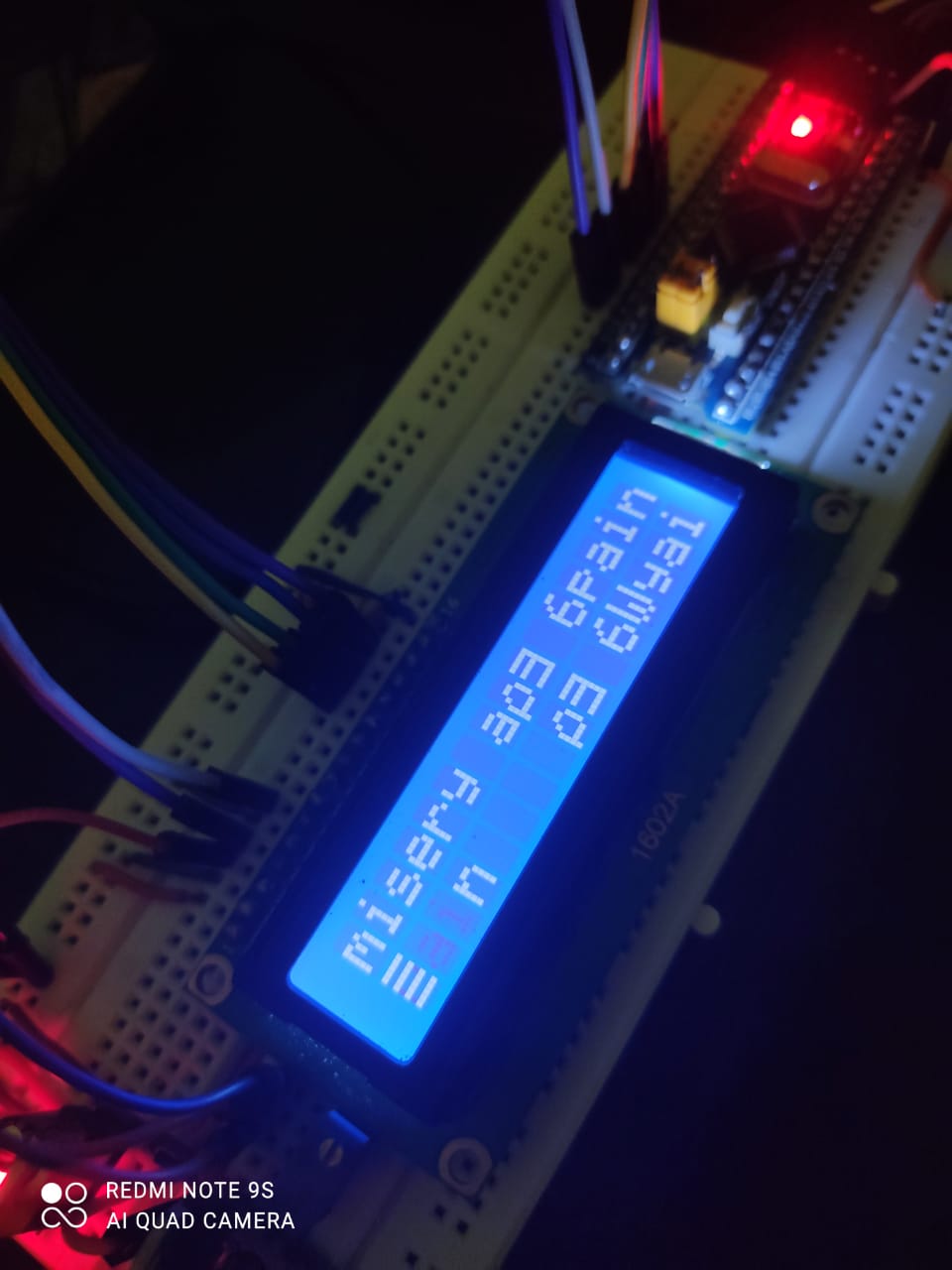

and my lcd prints:


Regards,
losingmymind01

[stevestrong]

viewtopic.php?f=2&t=301

Which core and which LCD library do yo use?

[losingmymind01]

viewtopic.php?f=2&t=301

Which core and which LCD library do yo use?

I'm using a STM32F103C8 (20kRAM, 64kFlash) [Blue Pill] and the LiquidCrystal library working on the arduino IDE

[stevestrong]

And which core?
If you don't know, then post a picture of the selected board in Arduino IDE.
Please also post a link to the library.

[losingmymind01]

And which core?
If you don't know, then post a picture of the selected board in Arduino IDE.
Please also post a link to the library.

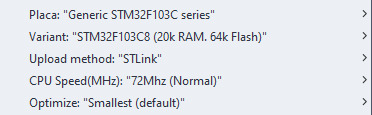

This is what i have in Arduino IDE:


And the link to the library is: https://github.com/arduino-libraries/Li ... dCrystal.h

[ag123]

there is a chance that stm32 is too fast for the lcd. Hence, try to insert 'strategic' delay(1) in the code to see if that'd help.
of course 1ms delay is a 'long' time, but at least it'd help locate the problem.
stm32 is capable of toggling pins up to 50mhz

[fredbox]

That library seems to work ok without any changes on a blue pill board.
I used PB4-PB9 to connect to the LCD display.

See attached example. It alternates the text on line1 and line2 repeatedly every time the LED blinks.

[oliviega]

Hello,
I had the same problem, and I solved it by setting in tools of the Arduino IDE:

- CPU Speed(MHz): "48Mhz (slow - with USB)"

Best,

[mrburnette]

IF you must use a 1602, the I2C backpack is highly recommended ... just be certain to run the I2C scanner as I had a few with an unusual address.


https://www.electroschematics.com/ardui ... -tutorial/
